CONING
Product Description

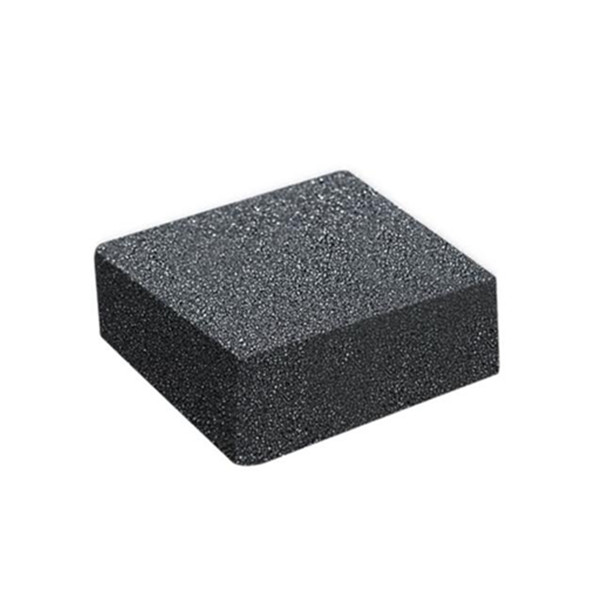

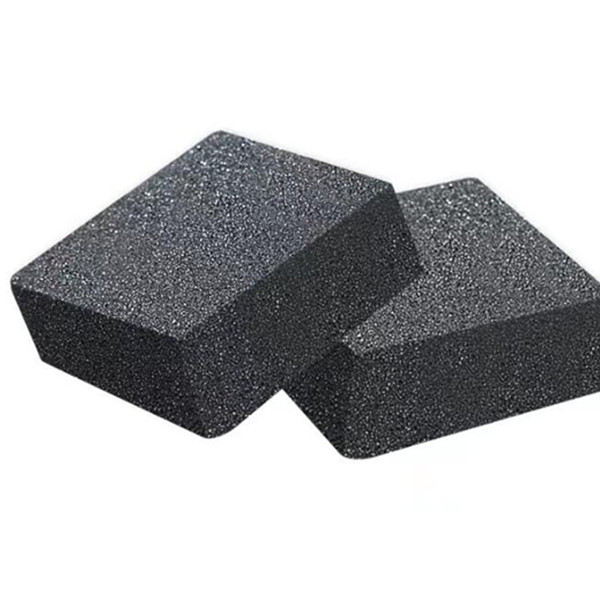

CONING cellular glass or name foam glass is a kind of new inorganic thermal insulation material, which is made of pure glass and mixed with appropriate amount of foaming agent, through high temperature tunnel furnace foaming and annealing cooling processing.
Foam glass Insulation is specially designed for high load bearing industrial applications. Its unique combination of high compressive strength and low thermal conductivity makes it ideal for a wide range of tank base construction and other industrial load bearing application.
Performance

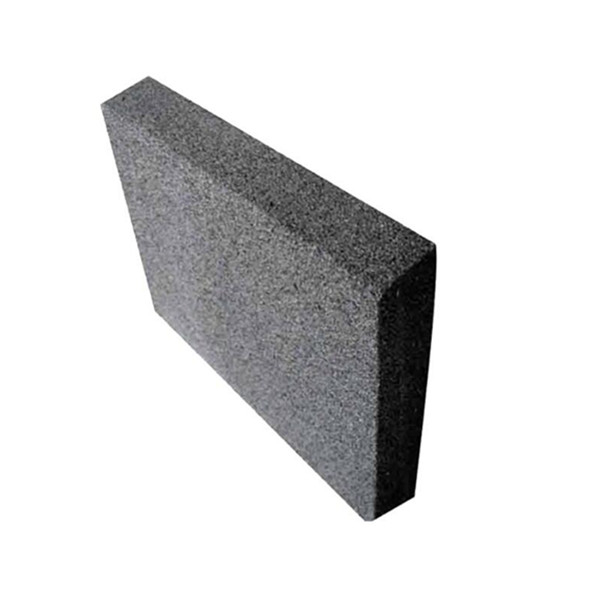

Foam Glass Insulation Panels for Energy-efficient Building are a type of insulation material specifically designed for use in building construction.
Foam glass panels have excellent thermal insulation properties. They are used to insulate walls, floors, and roofs, helping to reduce heat transfer and improve energy efficiency in buildings. Foam glass insulation panels are lightweight, easy to install, and provide long-lasting insulation performance.
They are also fire-resistant and do not absorb moisture, making them a durable and sustainable choice for energy-efficient building projects.
Non-flammable, asbestos free, non-toxic
Anti-corrosion and chemical resistant
High compressive strength
Eco-friendly, sustainable
Impermeable to water or moisture
Tech Data
No | Item | Unit | Standard | Test Result | Conclusion |
01 | Thickness | 120mm | 120mm | 120mm | Meet Standard |
02 | Density Deviation | Kg/m3 | ±5 | +4 | Meet Standard |
03 | Compress Strength | kPa | ≥0.50 | 1.08 | Meet Standard |
04 | Thermal Conducttive (Average temp. 25℃+/-2℃) | W/(m.k) | ≤0.058 | 0.058 | Meet Standard |
05 | Combustion Performance | A-class non combustion | GB8624-2012 Non combustion A(A1) | A-class non combustion | Meet Standard |
06 | Average temperature rise | ℃ | ≤30 | 11 | Meet Standard |
07 | Average mass loss rate | % | ≤50 | 1 | Meet Standard |
08 | Duration of combustion | s | =0 | 0 | Meet Standard |
09 | Total calorific value of combustion PCS | MJ/kg | ≤2.0 | 0.3 | Meet Standard |
10 | Breaking strength | MPA | ≥0.50 | 1.06 | Meet Standard |
11 | Moisture permeance | Ng/(Pa.s.a) | ≤0.07 | 0.006 | Meet Standard |
12 | Perpendicular Tensile strength | MPA | ≥0.12 | 0.31 | Meet Standard |
13 | Stability (70℃+/-2℃, 18hours in length) | % | ≤0.3 | 0.1 | Meet Standard |
14 | Stability(70℃+/-2℃, 18hours in width) | % | ≤0.3 | 0.1 | Meet Standard |
15 | Stability(70℃+/-2, 18hours in thick) | % | ≤0.3 | 0.1 | Meet Standard |
