Product Description

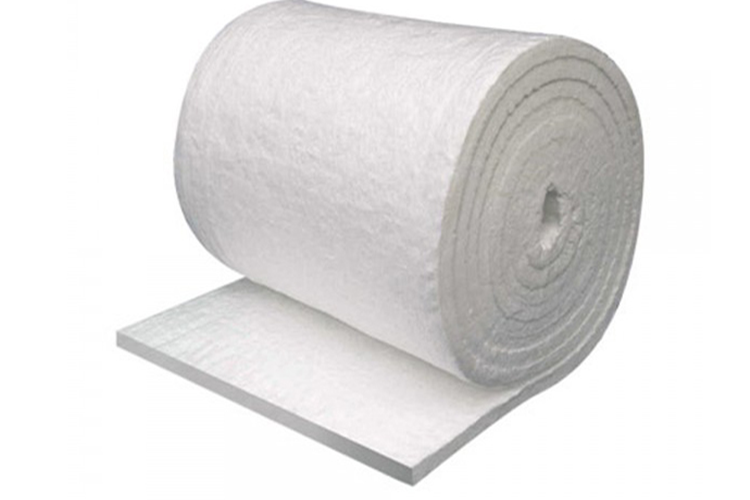

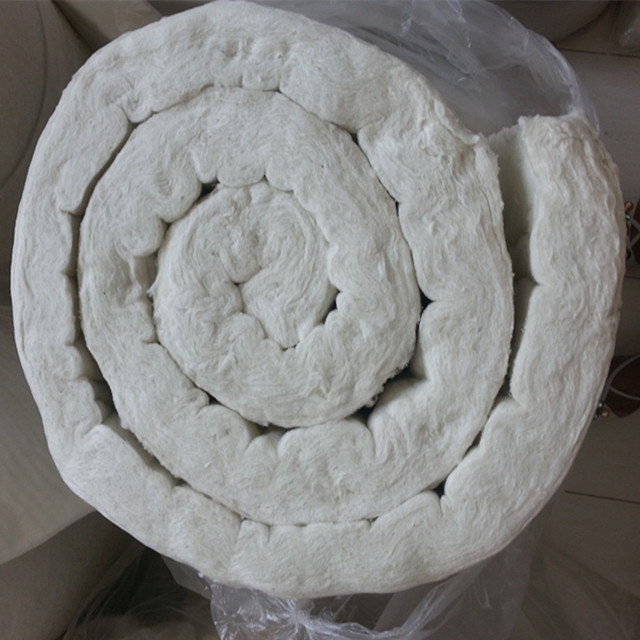

CONING Ceramic Wool Insulation blankets are made from high quality spun ceramic fibers,
which are mechanically needled from double sides which gives them high strength and increases its surface integrity.
Our blankets are air laid into a continuous mat and then are mechanically
needled. These ceramic fiber blankets are used in a variety of thermal management
applications due to its superior insulating properties, excellent chemical resistance, high
resilience and flexibility. Also, these properties are retained at high temperatures without
causing smokes or fumes.
Product Features
Electric power industry, electric boilers, steam turbines and nuclear power insulation.
Fire and heat insulation in shipbuilding industry.
Fire and heat insulation of construction industry and fire doors.
Wall lining of high temperature reaction equipment and heating equipment in chemical industry.
Automobile and train manufacturing, fire protection and heat insulation.
Furnace lining, furnace door, top cover dense
Specification
Product No. | Thick mm | Wide mm | Length mm | Price Reference |
CNCWIB25100 | 25 | 610 | 7200 | |
CNCWIB25128 | 25 | 610 | 7200 | |
CNCWIB30100 | 30 | 610 | 7200 | |
CNCWIB30128 | 30 | 610 | 7200 | |
CNCWIB50100 | 50 | 610 | 3600 | Contact Us |
CNCWIB50110 | 50 | 610 | 3600 | |
CNCWIB50120 | 50 | 610 | 3600 | |
CNCWIB50128 | 50 | 610 | 3600 | |
CNCWIB50135 | 50 | 610 | 3600 |
Tech Data
TEST | STANDARD | RESULTS | |
Characters | White colorBlanket, can be folded | Meet test | |
Identification | Noise reduction coefficient (NRC) | GBJ88-1985 | 0.65 |
Reshrinking temperature (℃) | GB/T11835-1998 | 710 | |
Thermalconductivity W/(M.K)Average Temperature: 70℃ | GB/T10294-1988 | 0.042 | |
Max. Temperature (℃) | 1260 | Qualified | |
Working Temperature (℃) | 1200 | Qualified | |
Density | 128KG/M3 | Qualified | |
ChemicalComposition(%) | AL2O3 | 46 | Qualified |
AL2O3+SiO2 | 97 | Qualified | |
AL2O3+SiO2+ZrO2 | - | - | |
ZrO2 | - | - | |
Fe2O3 | <1.0 | Qualified | |
Na2O+K2O | ≤0.5 | Qualified | |
Moisture absorption rate | < 5% | Qualified | |
