CONING
Product Description

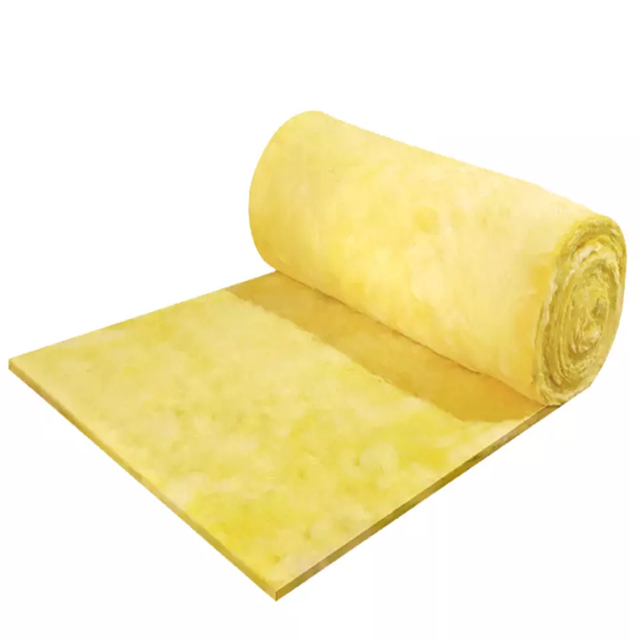

CONING steel structure system glass wool blanket is specially designed for thermal insulation and sound absorption of steel structure buildings.
The surface can be attached with CONING K series facing as a vapor barrier, which can be widely used in the thermal insulation system of industrial plants, logistics,large supermarket,exhibition center,airport, stadiums and other large public buildings
Specification
Product Type | LKG24 | LKG28 | LKG32 | LKG40 | LKG48 |
(kg/m³) Standard density | 12 | 14 | 16 | 20 | 24 |
(w/m•k) Thermal Conductivity | 0.041 | 0.039 | 0.037 | 0.035 | 0.034 |
(mm) Thickness | 30-200 | ||||
(mm) Width | 1150-1250 | ||||
(mm) Length | 8000-22000 |
Details
Product No. | Thick mm | Wide mm | Length mm | Price Reference |
CNMBR2520 | 25 | 1200 | 30000 | |
CNMBR5010 | 50 | 1200 | 15000 | |
CNMBR5012 | 50 | 1200 | 15000 | |
CNMBR5016 | 50 | 1200 | 20000 | |
CNMBR5024 | 50 | 1200 | 20000 | |
CNMBR5032 | 50 | 1200 | 10000 | Contact Us |
CNMBR10012 | 100 | 1200 | 10000 | |
CNMBR10016 | 100 | 1200 | 10000 | |
CNMBR15012 | 150 | 1200 | 10000 | |
CNMBR15016 | 150 | 1200 | 10000 | |
CNMBR20016 | 200 | 1200 | 10000 |
