CONING
Product Description

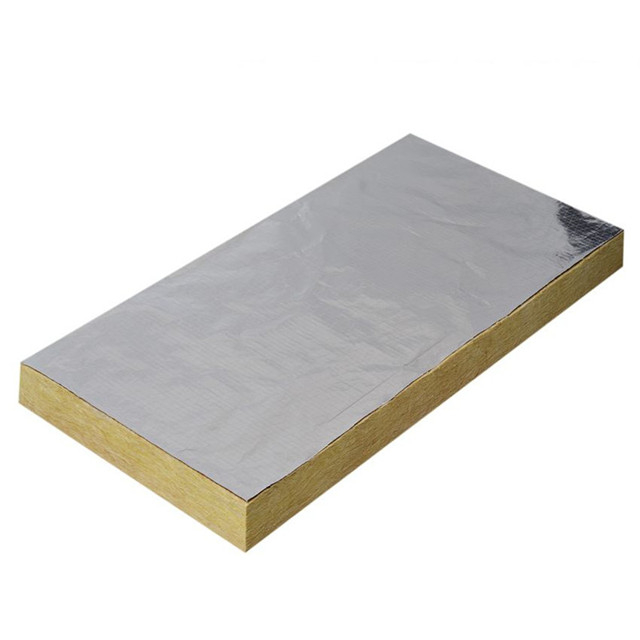

CONING curtain wall rock wool board is a lightweight, semi-rigid or rigid stone wool insulation board designed specifically for use in curtain wall systems, and is best suited for backpan or mechanical fastening applications.
It offers a variety of curtain wall specifications.
CONING curtain wall rock wool also available with or without reinforced foil facing.
Product Features
Thermal Conductivity 0.036 W/mK.
Class A fire resistance
Excellent Acoustic Performance.
Excellent mod resistance and good chemical stability
Great moisture resistance
Improves energy performance
Easy to install.
Where Application
Curtain Wall
Specification
Product NO. | Thickmm | Wide mm | Length mm | Density Kg/m3 |
CNCWP50120 | 50 | 600 | 1200 | 120 |
CNCWP50150 | 50 | 600 | 1200 | 150 |
CNCWP75120 | 75 | 600 | 1200 | 120 |
CNCWP75150 | 75 | 600 | 1200 | 150 |
CNCWP75180 | 75 | 600 | 1200 | 180 |
CNCWP100150 | 100 | 600 | 1200 | 150 |
CNCWP100180 | 100 | 600 | 120 | 180 |
CNCWP150120 | 150 | 600 | 120 | 120 |
CNCWP200120 | 200 | 600 | 120 | 120 |
